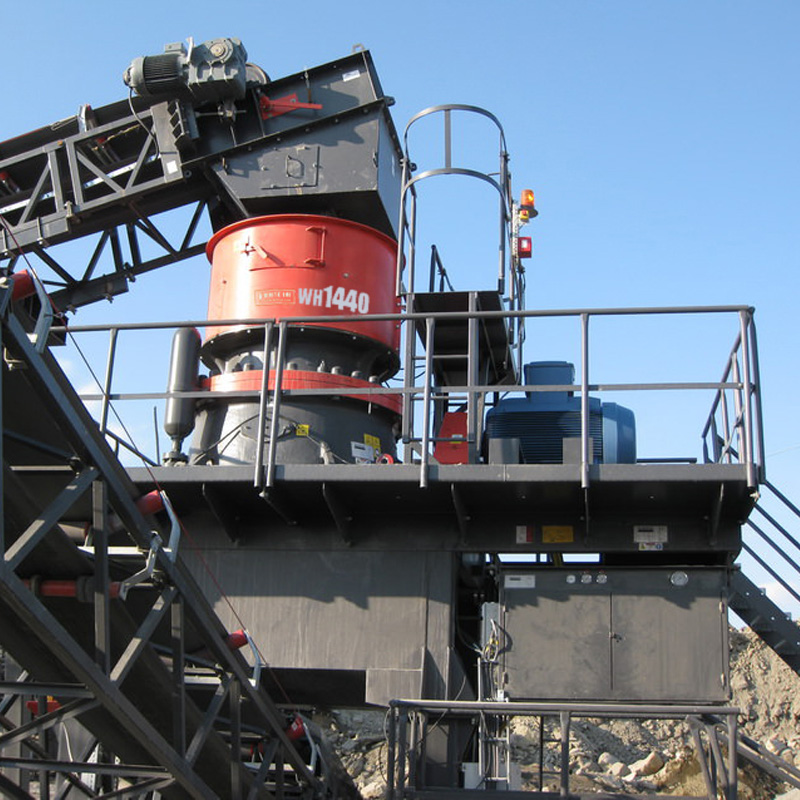

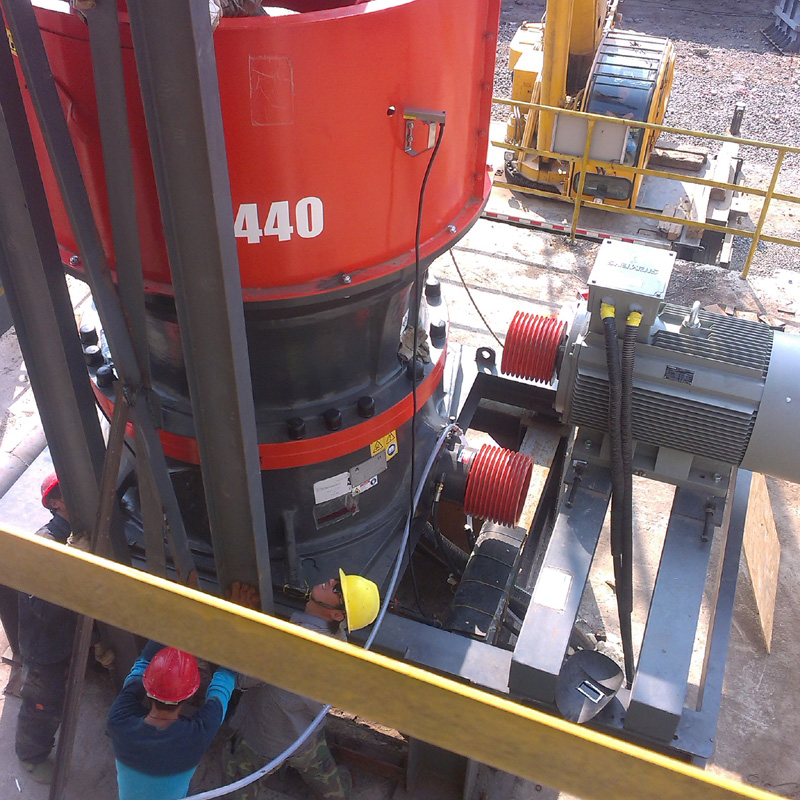

WS/WH cone crusher
Tel: +86-21-68768882
Email: info@shwlm.com
Video
  • Features
  • Technique Data
  • Service
The WHITE LAI WS/WH cone crusher has undergone extensive upgrades optimizing its operations at all levels. The enhancements cover the entire crusher: feed hopper, top shell, bottom shell and main shaft/head center.

Robust design and extended life

• The top shell has been reinforced to meet the great demands from the quarry and mining customers. Developed in our latest software, its brand-new design offers smoother radiuses to decrease tensions.Furthermore, the spider cap diameter has been increased to protect the spider hub.
• Increased clamping force to secure the spider cap on the top shell.
• The feed hopper is bolted with lock nuts and has a reinforced fourpiece design granting it increased stability. In addition, it has a larger and robust inspection hatch.
• The bottom shell has a fi ve-arm instead of three-arm design, providing the eccentric hub with a stronger support and achieving overall greater sturdiness.
• The inspection hatch on the bottom shell is made in PU instead of steel and includes a wear indicator.
• Cylindrical and stronger fi t between the head center and the main shaft to meet the great demands from quarry and mining customers.
• Deeper cavity in the top of the spider cap – easier for the rock to build up and protect the spider cap.
• The top shell is prepared for optional TT5 sensor (PT100 transducer)
– monitoring the temperature in the spider bearing thus offering protection of the spider bearing and preventing major failure.



Better throughput and optimal productivity

• Larger breathing tube to allow free fl ow of air in/out in the spider bearing, preventing clogging to take place.
• The spider arms are lifted up creating more room for the material to fl ow into the chamber.
• An optional level indicator is available for a better control of the level in the feed hopper. This radar sensor in K-band technology performs continuous level measurements which are very precise and make it possible to adjust the material level within small variations.


Reduced vibration and noise

The WHITE LAI WS/WH cone crusher is equipped with Sandvik lightweight polymer linings for wear protection and noise reduction, better working environment and longer wear life. The linings are easy to install and to change.
• Inspection door protected with rubber.
• Module rubber system in feed hopper.
• Cone plates with rubber in feed hopper.
• Rubber sideliners and arm liners in bottom shell.
• All rubber components are possible to recycle.

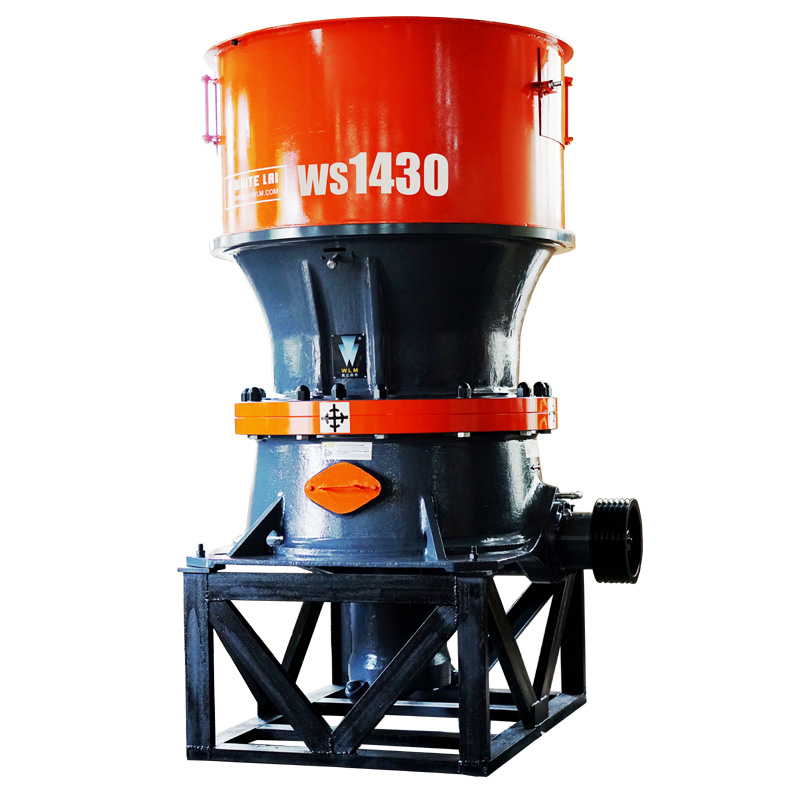

WS Cone Crusher

Model
Power
(kw)
 Cavity
Max Feed Size
(mm)
The Capacity (TPH) of different Discharge size(mm)
16 19 22 25 29 32 35 38 41 44 48 51 54 57
WS1420 90 EC 240     102-118 108-144 115-154 121-162 127-145 132
C 90 77 82-110 87-116 92-123 98-113 103
WS1430 132 EC 180       151 161-245 169-257 176-269 184-281 192-292 200-304 210-281 218-250 225
C 145       170-196 182-277 191-290 199-304 208-217 217-3300 226-302 237
MC 115     130 137-209 147-224 154-235 161-245 168-256 175-267 182-244 192
WS1440 220 EC 215             273-318 285-434 297-452 309-470 325-495 337-447 349-406
C 175           1291 304-463 317-483 331-503 344-456 362-421 375
MC 140         245 257-391 269-409 281-427 292-445 304-403 320-372 332
WS1660 315 EC 275               331-385 345-514 359-593 378-624 392-647 406-670 420-693
CX 245             335 350-464 364-602 379-626 399-658 413-683 428-707 443-731

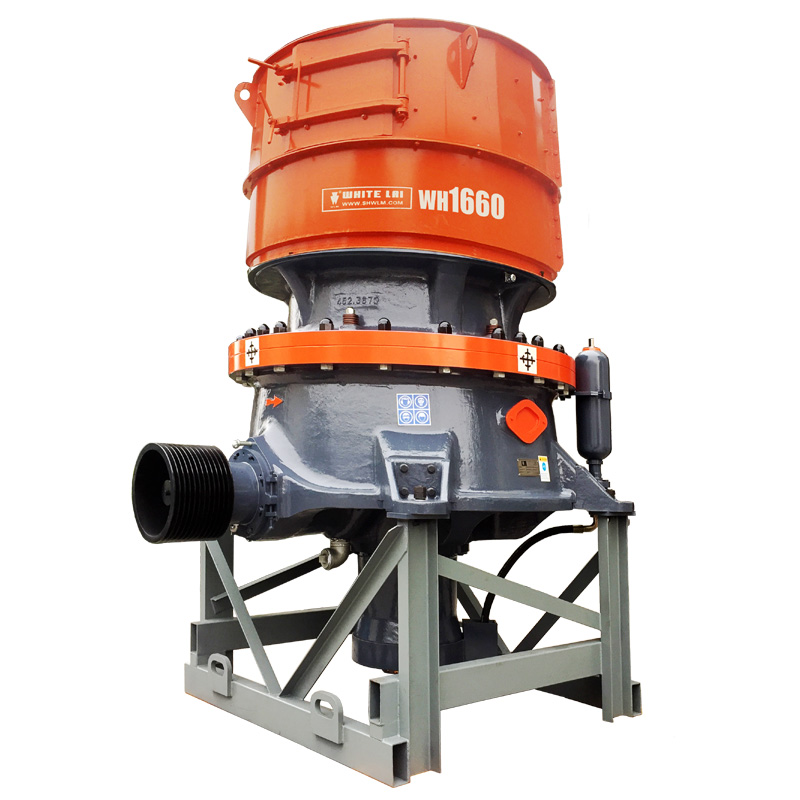

WH Cone Crusher
Model
Power
(kw)
 Cavity
Max Feed Size
(mm)
 The Capacity (TPH) of different Discharge size(mm)
4 6 8 10 13 16 19 22 25 32 38 44
WH1420 110 EC 135       46 50-85 54-92 85-99 62-105 66-112 76-128
C 90       43-53 46-89 50-96 54-103 57-110 61-118 70
M 65     36-44 38-74 41-80 45-76 48-59
MF 50   36 38-67 40-71 44-68 47-53
F 38 27-34 29-50 31-54 32-57 35-48 38
EF 29 30-40(80%细度小于4.5-5.5mm)
WH1430 160 EC 185         69-108 75-150 80-161 86-171 91-182 104-208 115-208
C 145         66-131 71-142 76-152 81-162 86-173 98-197 109-150
MC 115       57 62-140 67-151 72-162 77-173 82-184 93-145
M 90       64-84 69-131 75-142 80-152 86-162 91-154 104
MF 75     61 65-106 70-115 76-124 81-126 87-114 92
F 50   48-78 51-83 54-88 59-96 63-103 68-105 72-95 77
EF 35 70-90(80%细度小于5-5.6mm)
WH1440 250 EC 215           114-200 122-276 131-294 139-313 159-357 175-395 192-384
C 175         101 109-218 117-292 125-312 133-332 151-378 167-335 183-229
MC 140         97-122 105-262 113-282 120-301 128-320 146-328 161-242
M 110         117-187 126-278 136-298 145-318 154-339 175-281 194
MF 85       114 124-227 134-245 144-263 153-281 163-299 186-248
F 70     90-135 96-176 104-191 112-206 120-221 129-236 137-251 156-208
EF 38 100-125(80%细度小于6-7.5 mm)
WH1660 350 EC 275           177 190-338 203-436 216-464 246-547 272-605 298-662
CX 245           174-194 187-374 200-488 212-519 242-592 268-654 293-521
C 215           171-190 184-367 196-480 209-510 238-582 263-643 288-512
MC 175           162-253 174-426 186-455 198-484 226-552 249-499 273-364
M 135           197-295 211-440 226-470 240-500 274-502
MF 115         192 207-369 222-396 237-423 252-450 287-451 318-363
F 85         195-304 210-328 225-352 241-376 256-400 292-401 323
EF 65         211-293 227-316 244-298 261-290
WH1870 500 EC 300               448-588 477-849 544-968 601-1070 658-1172
C 240             406 433-636 461-893 525-1018 581-1125 636-1232
MC 195             380-440 406-723 432-837 492-954 544-1055 596-1155
M 155             400-563 428-786 455-836 519-953 573-1054 628-1154
MF 100           379-424 407-716 434-765 462-814 527-928 852-942 638-789
F 90         357-395 385-656 414-704 442-752 470-800 535-912 592-857 649-718
EF 80       280-405 304-517 328-558 352-598 376-639 400-680 455-775 503-128 551-669
CRUSHING CHAMBERS

WS-CRUSHERS
Three standard crushing chambers are available:
MC = Medium Coarse
C = Coarse
EC = Extra coarse

WH-CRUSHERS
Several standard crushing chambers are available:
EEF = Extra Extra Fine
EF = Extra Fine
EFX = Extra Fine Xtra
F = Fine
MF = Medium Fine
M = Medium
MC = Medium Coarse
C = Coarse
CX = Coarse Xtra
EC = Extra Coarse


CAPACITY, MTPH
1.Performance figures are approximate and give an indication of what the crusher can produce.
2.They apply to open circuit crushing of dry material with a bulk density of 1600 kg/m3. It is assumed that material much finer than the crusher’s closed side setting (CSS) is removed from the feed.
3.Consult us regarding the application of the crusher since the chosen eccentric throw, degree of reduction, the material´s crushability (Wi), the size analysis of the feed, the design of any recrushing circuit and the moisture content in the feed all affect performance of the crusher.

  • Agency and agent all ovr the world
    White Lai have many office in main market , and services to the customers face-to-face.
  • Wear parts supply whole year
    White Lai with most professional wear parts supply system,to meet the market demand for services effectively.
  • The top services to you
    White Lai's after-service number is 0086-21-68768882, 24 hours technical support by e-mail, by phone.
  • The first-class customer service
    If needed,experienced technicians guidance is available anytime.
  • Technical support whole day
    White Lai has service team , guidence with maintenance , spare parts , technical service work ,ect.
