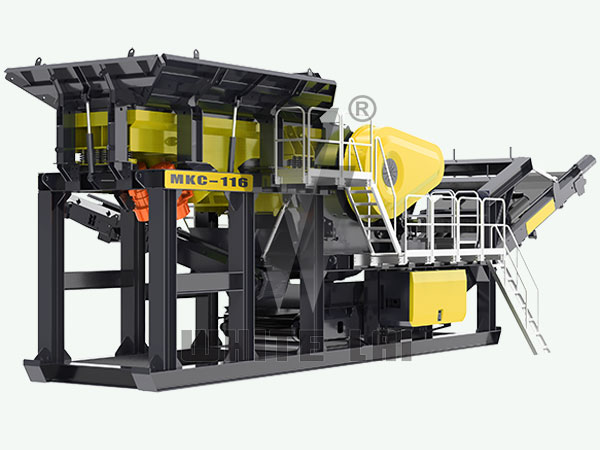

MKC Series Modular Jaw Crushing Plant
  • Features
  • Technique Data
  • Service
The MKC series modular jaw crushing plant adopts an optimized frame structure and movable jaw design, which is especially suitable for multi-point quarries that require regular movement of equipment between different locations. A standard truck can easily tow it away. With the modular crushing and screening equipment solution, you can develop new business opportunities without sacrificing time, mobility and production capacity.

Product advantages
• Excellent industrial design, more suitable for working conditions at site
• Outstanding anti-fatigue ability, long uptime
• Capable of any harsh working conditions
• Longer service life, convenient and economical maintenance
Feeding equipment
Feeding capacity(t/h) 450
Max. feeding size(mm) 700
Feeding heigh(mm) 4100
Hopper volume(m³) 5
Vibrating feeder
Length x Width(mm) 4000 x 1040
Power(KW) 3.7 x 2
Jaw crusher C106
Length and width of Crusher openin(mm) 1060 x 700
Max. feed size(mm) 700
Crusher weight(t) 18
Crusher power(KW) 110-6
Main bell conveyor
Stacking height(mm) 2500
Length x Width((mm) 8500 x B1200
Power(KW) 15
Tail belt conveyor(optional)
Stacking height(mm) 2100
Length x Width(mm) 3600 x  B500
Power(KW) 3
Iron remover(optional)
Length x Width(mm) 1670 x 800
Complete machine
Machine weight(t) 32
Processing capacity(t/h) 130-480
Total power(KW) 135(138)
Transport size L x W x H(mm) 1500X3000X4100

1.The processing capacity of the crusher is related to the stone hardness, feed size and discharge size.
2.Standard: manual control, automatic feeding system.
3.Optional: sied conveyor belt folding, iron remover, dust removal spray system.
4.All data in the table is for reference only. Please consult us for specific application.
