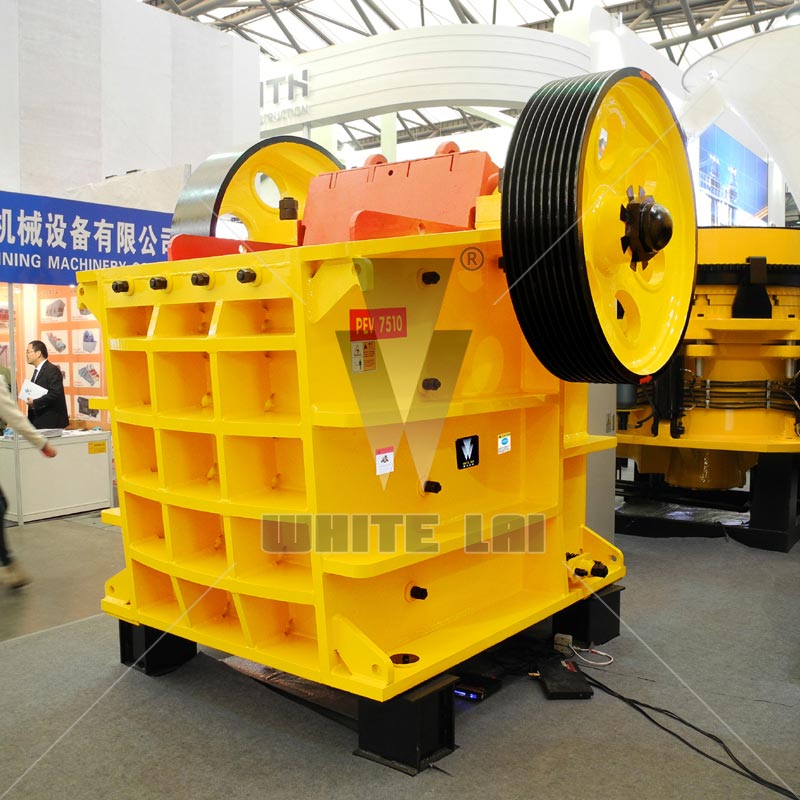

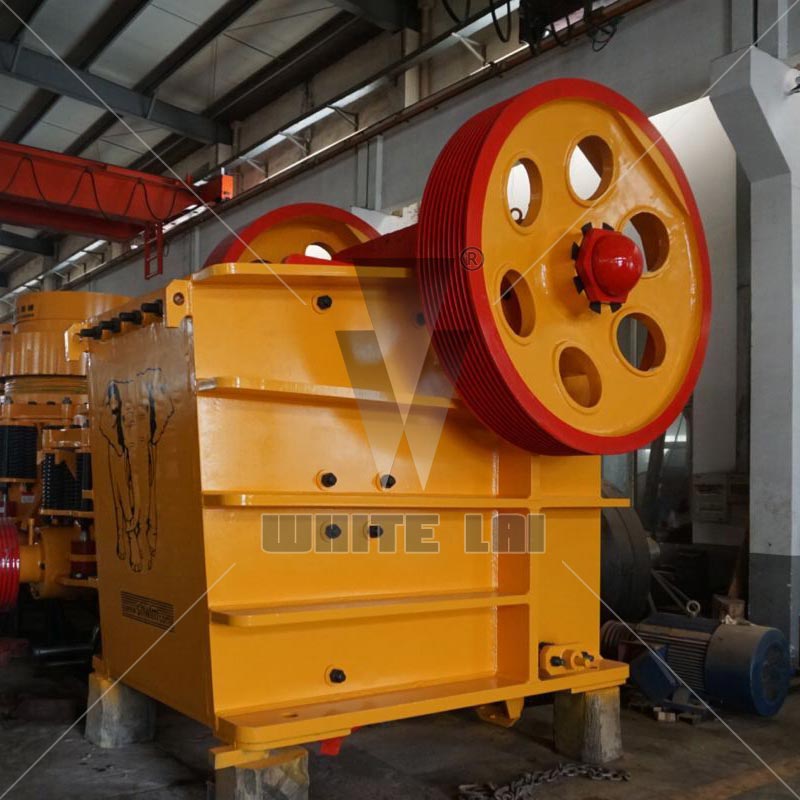

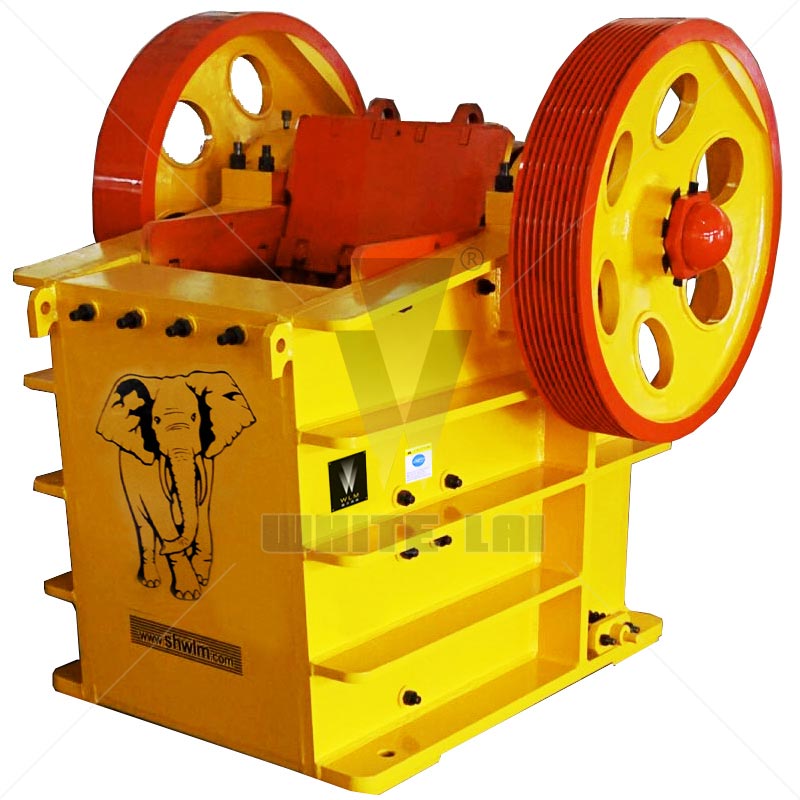

PEV Jaw Crusher
Video
  • Features
  • Technique Data
  • Service
  • Oil bearings and labyrinth seals
PEV Jaw Crushers are built with top quality oil bearings and seals. The lubrication system makes jaw crusher operation smooth.

  • Hydraulic adjustment
PEV Jaw Crushers are equipped with hydraulic adjustment system. It include hydraulic oil jacks, shim plates and other components. The hydraulic system easy and fast adjust the jaw mouth clearance, Saving operation time, improving work efficiency.

  • Solid main frame
All is with welded steel construction & stressed relieved Jaw Crusher main frame. Heavy duty reinforcement at major stress points.

  • Safety of single toggle operation
PEV Jaw Crushers perform crushing operations with force exerted from advancing and retreating motions of a swing jaw which is suspended from an eccentric shaft at the top while supported by toggle plate, seat & block at the bottom. These safety toggle plate, seat & block provide complete jaw protection from ensures a nip angle be properly maintained.

  • Large crushing ratio production
Since WHITE LAI Jaw Crushers have larger and deeper crushing chambers and the crushing angle is designed to be sharp, a very high crushing ratio can be achieved. For certain applications, a single toggle crusher can render both coarse and medium or medium and fine crushing quality.
Model Feed Opening(mm) REV
(R.P.M)
Power
(kW)
Discharge Opening[in(mm)]Capacity( mtph ) Weigth (t)
50 70 80 100 125 150 200 225 250 300
PEV600×400 600×400 275 30-40 26 38 45 60 75           6.4
PEV750×500 750×500 250 45-60 40 60 70 90 112 130         9.3
PEV900×600 900×600 250 60-75     105 130 160 182         14.1
PEV1050×650 1050×650 260 75-90       150 180 205 255       17.2
PEV1050×750 1050×750 230 90-115       180 210 237 294       22.3
PEV1200×800 1200×800 230 115-150       210 250 280 320 350     26.65
PEV1200×1000 1200×1000 200 130-150         265 302 370 402     45
PEV1350×800 1350×800 200 135-150       250 300 340 420 450     27.55
PEV1500×1000 1500×1000 200 185-225         310 350 440 480 510   50.2
PEV1500×1200 1500×1200 190 185-265           415 500 540 580 630 73.7
  • Agency and agent all ovr the world
    White Lai have many office in main market , and services to the customers face-to-face.
  • Wear parts supply whole year
    White Lai with most professional wear parts supply system,to meet the market demand for services effectively.
  • The top services to you
    White Lai's after-service number is 0086-21-68768882, 24 hours technical support by e-mail, by phone.
  • The first-class customer service
    If needed,experienced technicians guidance is available anytime.
  • Technical support whole day
    White Lai has service team , guidence with maintenance , spare parts , technical service work ,ect.
