Vibrating Screen
Video
  • Features
  • Technique Data
  • Service

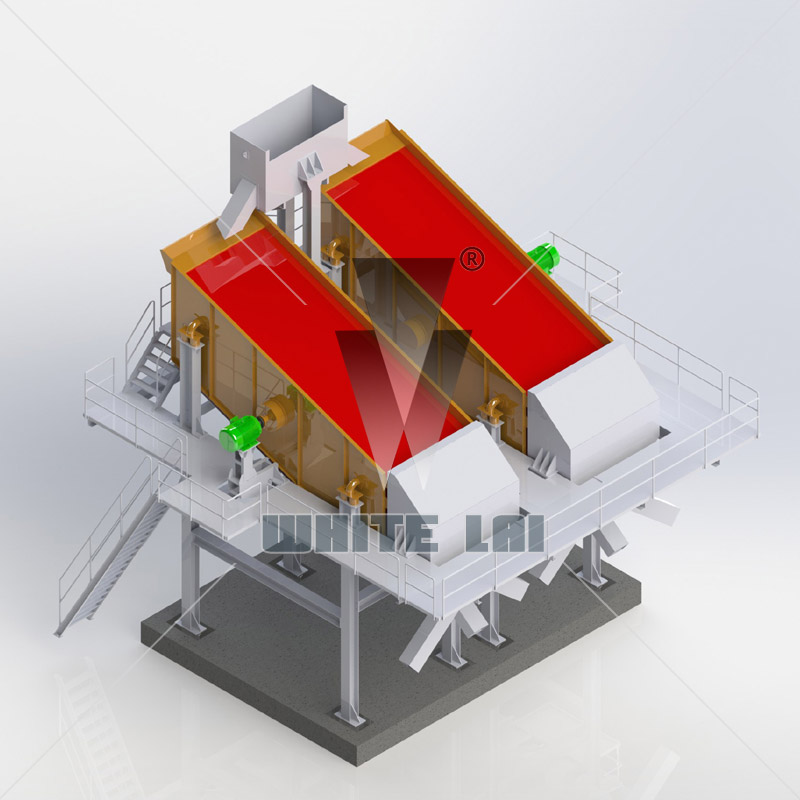

  • Efficient incline screen action
Increase your production and profit with the efficient E type incline Screen action. Inclined vibrating screen applies widely and most of the crushing plants adapt this type.

  • Simple Construction and easy maintenance
Compared to horizontal vibrating screen, inclined vibrating screen has only one shaft design, no gears are required. It is simple construction and easy maintenance.

  • Superior structure Bearings,Have No Axial Load
bearings are mounted onto spindles; shaft only transfers power from motor to bearing housings, weights and bearings. hence, bearings with housings, weights rotate together on spindles and heat generated by high speed rotation of bearings will not transfer to shaft. Therefore, no substantial extension of shaft occurs and consequently bearing will not be biased by an axial stress. so, the life time of bearings extend.

  • Power transfer via Universal Joint
Unique flexible power transfer by universal joint, compared to conventional puller / belt way can minimize bearing load and wear.

  • Wide applications
Incline screen has benefits of simple structure for easy maintenance and larger through capacity compared to horizontal screen. It applies widely in all kinds of aggregates, recycling and mining industries ect. The applications of inclined screen is very popular.

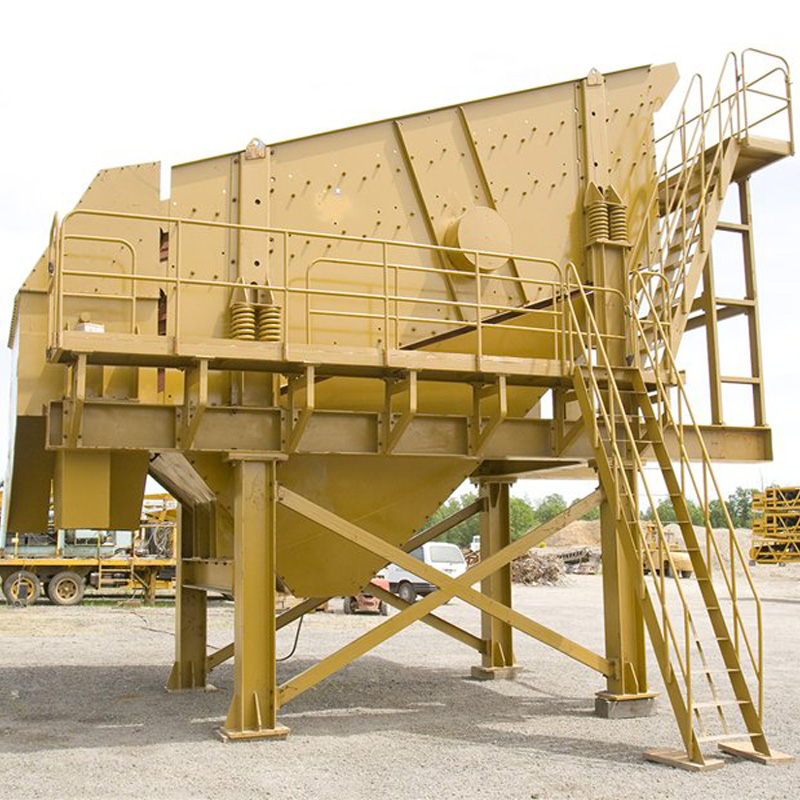

  • Ultra robust frame structure
Huck bolts construction frames into a box shape structure, high strength frame plates without welding and integrated screen decks with solid support to form a ever robust construction.

  • Screen deck design
Screen deck adapted arc shape cross beam and has features of high strength and low deflection. Single-crown deck design can provide maximum screen cloth tension and only fixes by fixed plates at two sides. This design spread material evenly across the screen.

  • Rubber Spring
Rubber springs are adapted for all series of screen with characteristics of reducing dramatically noise during start and stop screen.

Applications:

Aggregate Field, Concrete Mixing Plant, Dry Motar Plant, Quartz Sand etc.

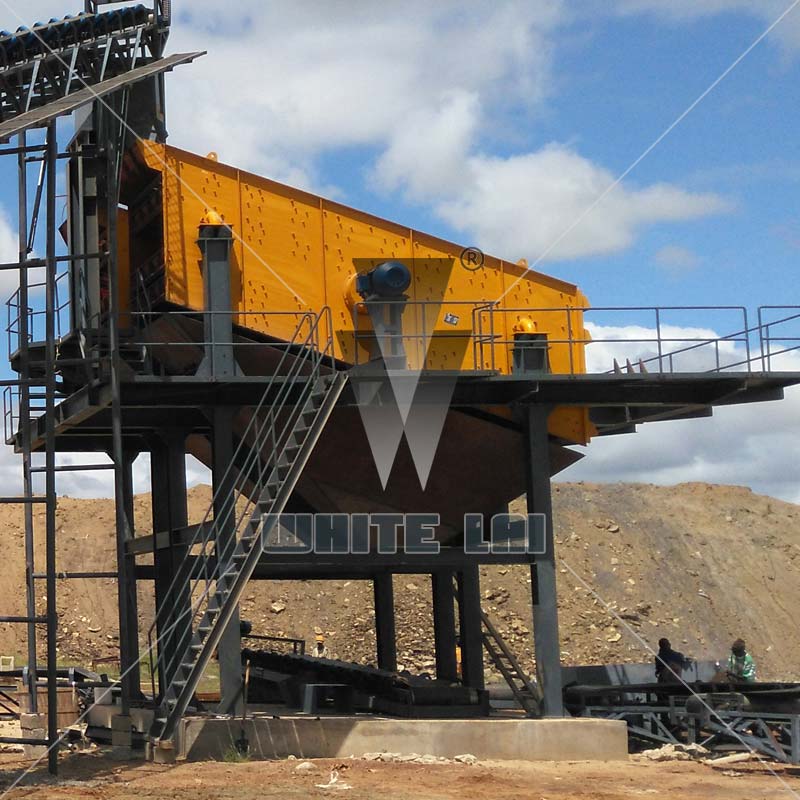

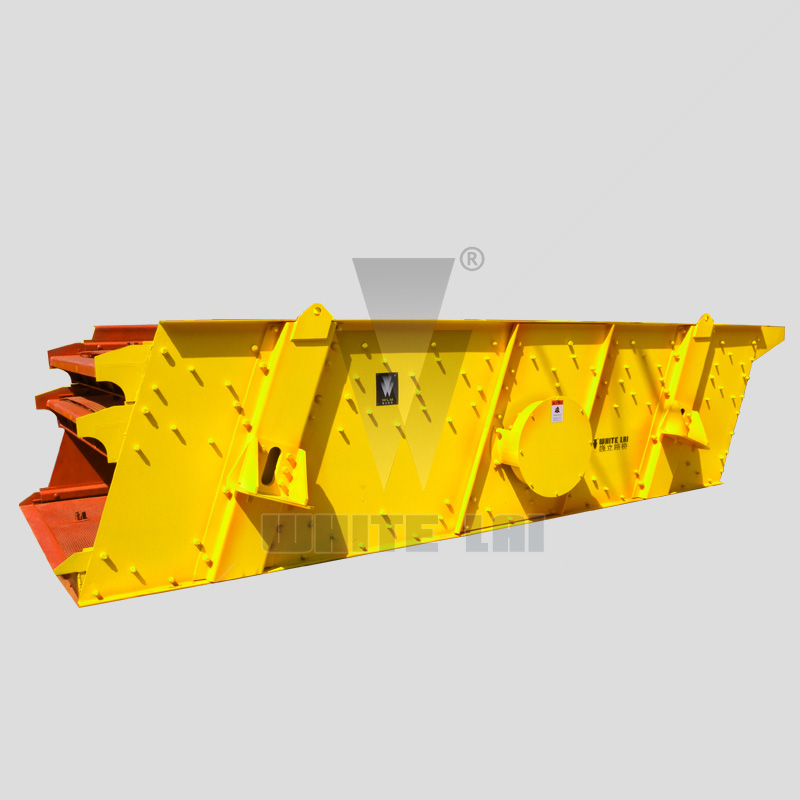

WHITE LAI YA type inclined vibrating screens are built in rugged construction to be stationed with a 15-degree angle in operating fields. Their design is simple, and they are especially useful and economical in screening applications for coarse crushed stones and minerals. The vibrating unit consists of an unbalanced eccentric shaft with added-on counterweights allowing for different stroke travels to generate a circle motion. Users can adjust the counterweights whenever necessary. Compared to horizontal screens, the inclined screens need less power thanks to the 15-degree slope and gravity effect.

Model Screen deck Screen size
(mm)
Max. feed size
(mm)
Capacity
(t/h)
Vibrating freauency
(Hz)
Power
(kw)
Weight
(t)
Overall dimension
L×W×H
(mm)
3YA-1245 3 1200×4500 200 15-80 16.2 11 4.807 5600×1800×1850
2YA-1548 2 1500×4800 200 30-180 13-16 15 5.8 5906×2100×1600
3YA-1548 3 1500×4800 200 30-200 13-16 18.5 6.866 5906×2100×1900
4YA-1548 4 1500×4800 200 30-250 13-16 18.5 7.36 5906×2100×2100
2YA-1854 2 1800×5400 250 50-300 16.2 22 6.769 6509×2536×1810
3YA-1854 3 1800×5400 250 50-300 16.2 30 8.285 6509×2536×1910
4YA-1854 4 1800×5400 250 50-300 16.2 30 9.796 6509×2536×2250
2YA-2160 2 2100×6000 250 100-400 16.2 30 9.68 7150×2670×2120
3YA-2160 3 2100×6000 250 100-400 16.2 30 10.206 7150×2670×2270
4YA-2160 4 2100×6000 250 100-400 16.2 30 11.8 7150×2670×2650
2YA-2460 2 2400×6000 300 150-600 16.2 30 10.2 7150×2900×1950
3YA-2460 3 2400×6000 300 150-600 16.2 30 12.35 7150×2900×2350
4YA-2460 4 2400×6000 300 150-600 16.2 30 14.25 7150×2900×2750
  • Agency and agent all ovr the world
    White Lai have many office in main market , and services to the customers face-to-face.
  • Wear parts supply whole year
    White Lai with most professional wear parts supply system,to meet the market demand for services effectively.
  • The top services to you
    White Lai's after-service number is 0086-21-68768882, 24 hours technical support by e-mail, by phone.
  • The first-class customer service
    If needed,experienced technicians guidance is available anytime.
  • Technical support whole day
    White Lai has service team , guidence with maintenance , spare parts , technical service work ,ect.
